Graphite Rod

2025-04-15 07:09:58

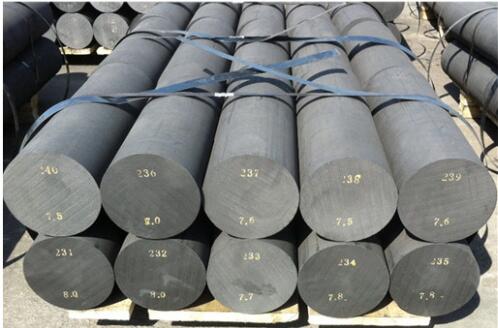

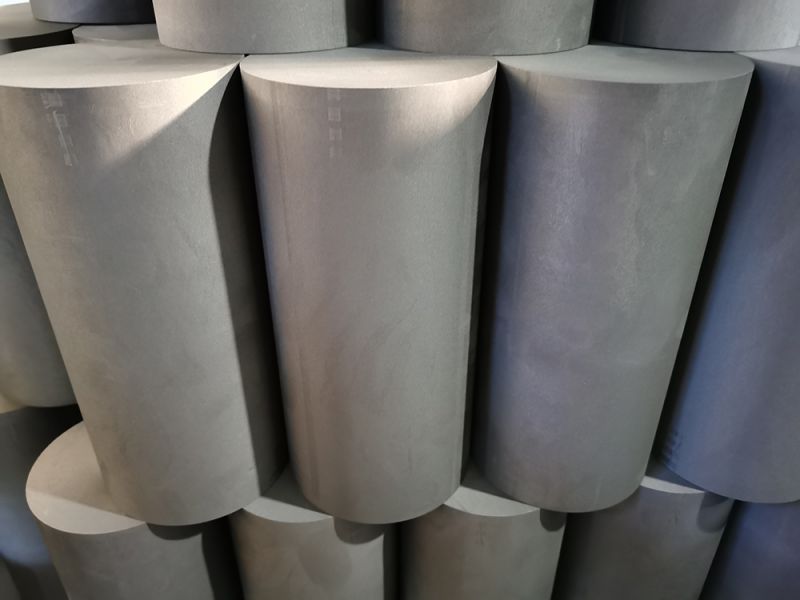

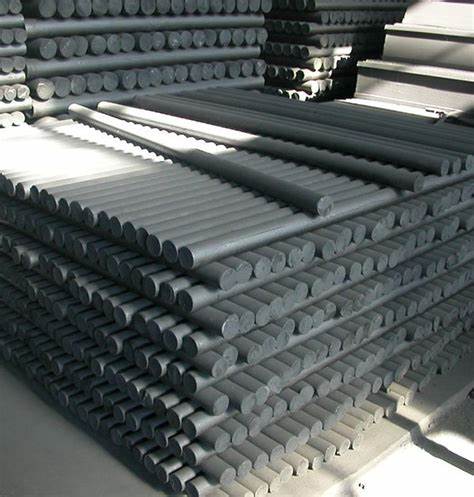

Graphite Rod
Applications
These graphite rods are widely used as electrodes, anodes, cathodes, heating elements, resistors, fluxing/degassing tubes, molds, crucibles, special structural parts, etc. in metallurgy, mechanical engineering, chemical & electrochemical industry, energy management, glass & ceramics, transportation and other industries.
Normal Size

AGR 0.2 Graphite Rod	Blank Size	Standard Diameter	mm	43, 53, 60, 66, 85, 110
AGR 0.2 Graphite Rod	Blank Size	Length	mm	600 — 1800
AGR 0.8 Graphite Rod	Machined Size	Standard Diameter	mm	75, 100, 125, 150, 175, 200, 225, 250, 300, 350, 400, 450
AGR 0.8 Graphite Rod	Machined Size	Length	mm	1700 — 2100

Specifications

Specifications	Unit	AGR0.8	AGR0.2-1	AGR0.2-2	AGR0.2-3
Bulk Density	g/cm³	1.75	1.60	1.70	1.76
Compressive Strength	MPa	45	20	32	48
Flexural Strength	MPa	25	10	16	25
Specific Resistance	μ Ω·m	7.5	9	9	9
Ash Content	%	0.3	0.05 – 0.5	0.05 – 0.3	0.05 – 0.3
Maximum Grain Size	mm	0.8	0.2	0.2	0.2
