Vibration Molded 0.8mm & 2mm Grained Graphite Block & Cylinder

2025-04-15 07:16:51

Vibration Molded 0.8mm & 2mm Grained Graphite Block & Cylinder
Applications
All kinds of graphite molds such as hot-pressing molds, static casting molds, centrifugal casting molds, pressure casting molds, etc.
All kinds of furnace parts such as resistance heating elements, induction susceptors, structural elements and charging plates, furnace linings, heat shields and covers for pulling monocrystalline silicon or optical fibers, etc.
Anodes for electrolysis of metals
Cathodes in aluminum electrolysis cells.
Parts for heat exchangers
Crucibles for melting and reduction.
Boats and trays for sintering.
Standard Sizes

WHL (mm)

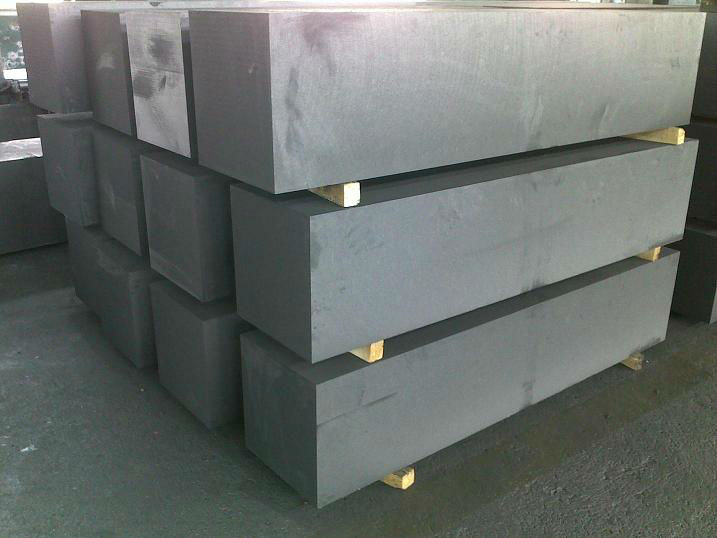

Block	400x400x1800, 500x500x1800, 500x330x1900, 520x330x2150,520x330x2550, 550x550x1800, 620x450x2150, 650x400x1800, 850x400x1800 500x500x1800mm (20x20x72”) 650x500x1800mm (25x20x72”) 650x500x2200mm (25x20x86”) 760x500x1800mm (32x20x72”) 810x500x1800mm (32x20x72”) 940x500x1880mm (37x20x74”) 1000x500x2100mm (40x20x82”) 1120x450x2200mm (44x17x86”) 1280x450x2550mm (50x17x110”)

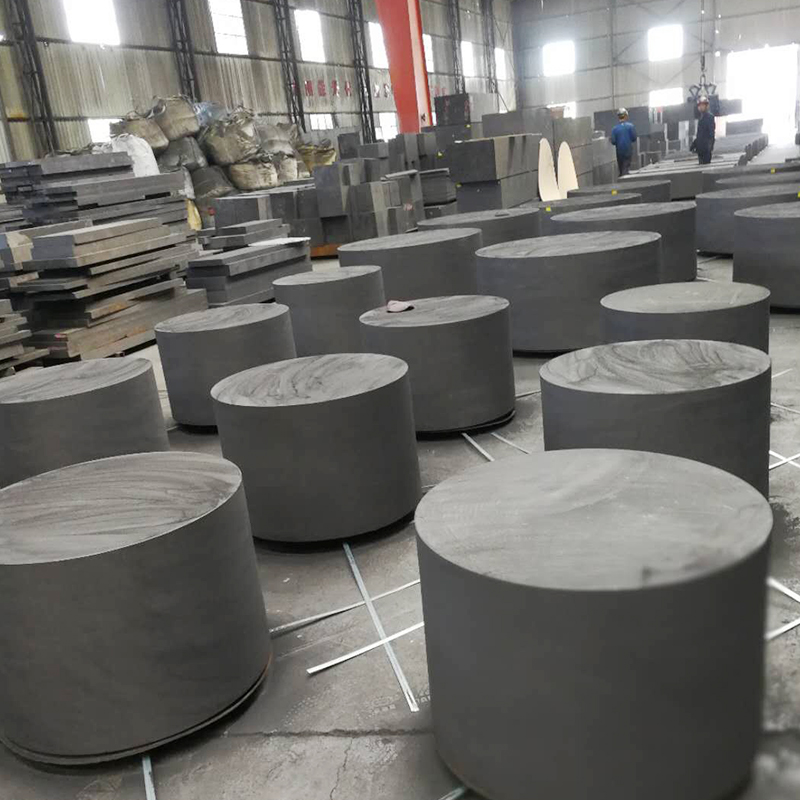

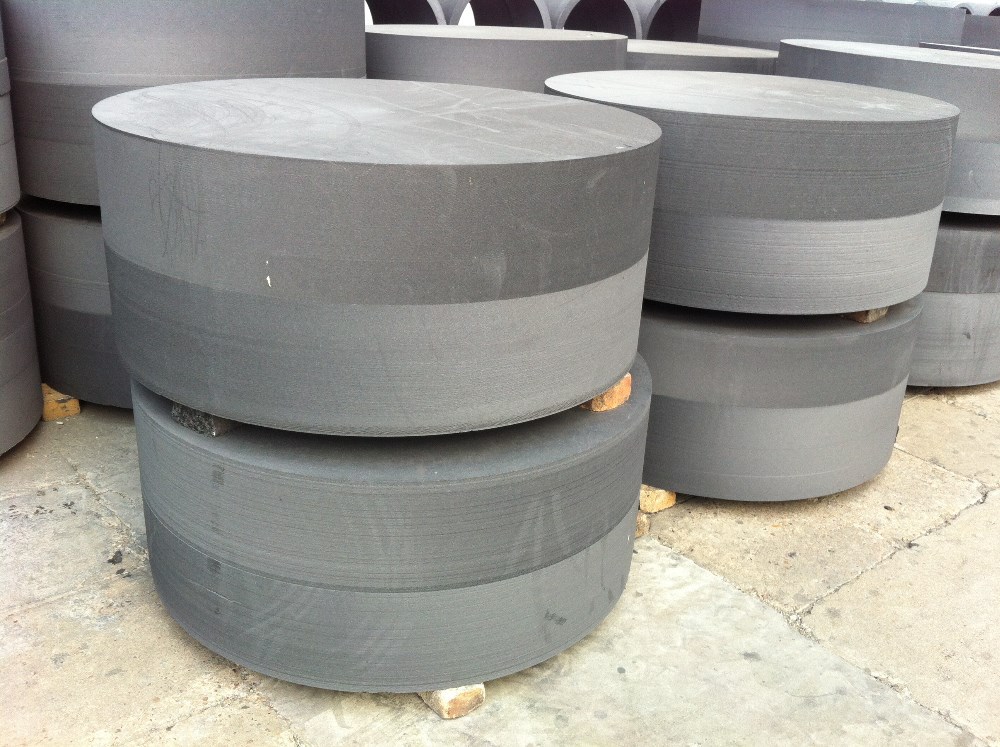

Cylinder	Diameter (mm): 400 to 1600
	Height (mm): 360 to 900
Other sizes and machined parts could be provided on request.

Specifications		Unit	AVG 2	AVG-0.8
Bulk Density	Min	g/cm³	1.73	1.73
Specific Resistance	Max	μ Ω·m	8.5	8.5
Compressive Strength	Min	MPa	38	38
Flexural Strength	Min	MPa	18	18
C.T.E. (100~600℃)	Max	10^-6/℃	2.5	2.5
Grain Size	Max	mm	2	0.8
Ash Content	Max	%	0.2	0.2

1. AVG Grade graphite is vibration molded.
2. The direction of testing specimens is with the Grain, if not stated otherwise.
3. The data should be regarded as general information, not guaranteed specification limits.
